YS-C100

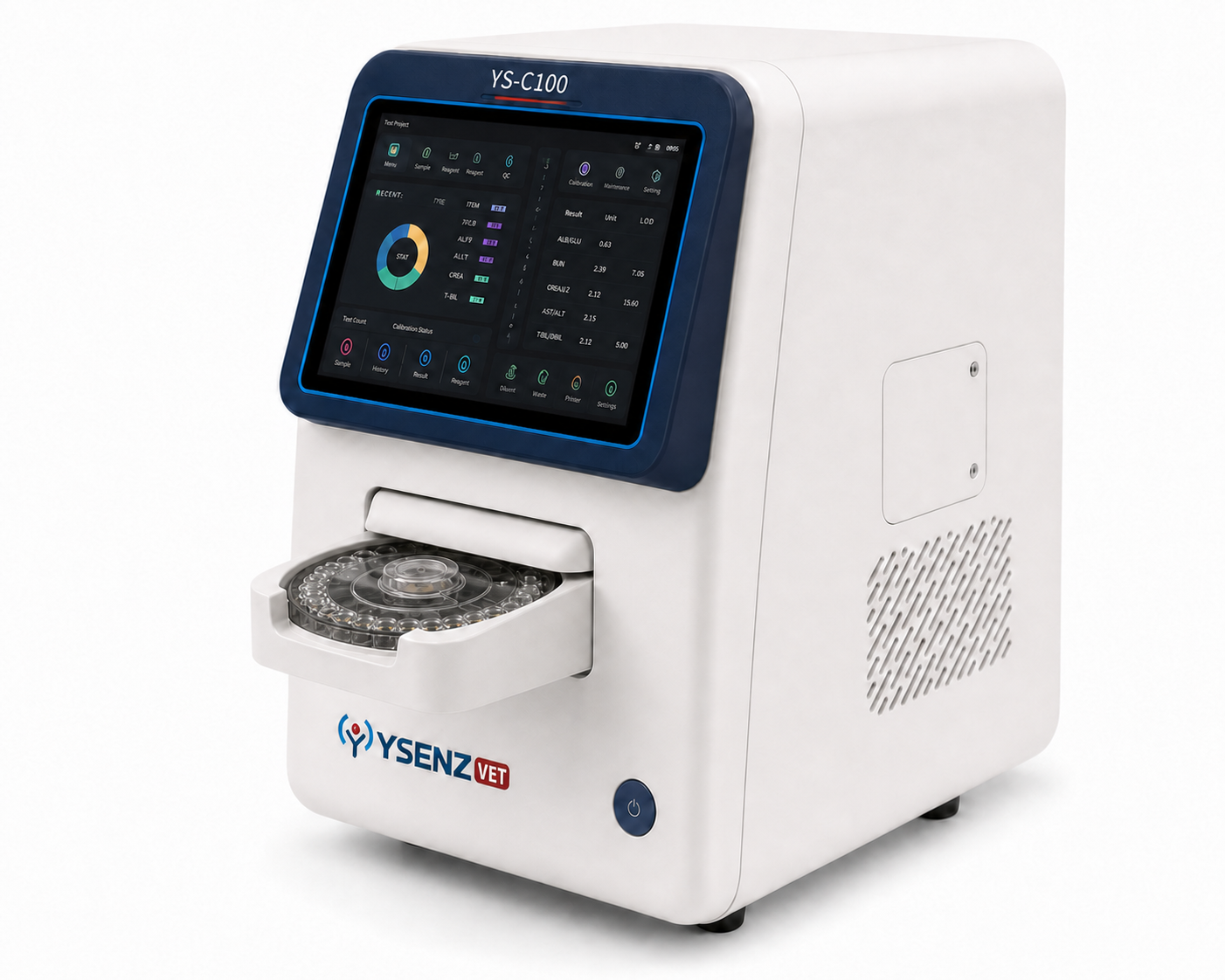

Compact automatic veterinary biochemistry analyzer designed for efficient on-site testing. Single-use reagent discs, one-button operation and an integrated data workflow deliver results in approximately 14 minutes.
01
Small sample
Approximately 150 μL of serum or plasma.
02
One-button start
Integrated touchscreen and automated testing workflow.
03
Fast results
Routine chemistry results in approximately 14 minutes.
04
Compact and connected
4.5 kg design with LIS, USB, network and printing support.
TECHNICAL DATA
Specifications
- Sample type
- Serum, plasma
- Sample volume
- Approximately 150 μL
- Detection
- Colorimetry; transmission specific turbidimetry
- Test time
- 14 minutes
- Analysis
- End-point and rate methods
- Reaction temperature
- 37°C ±0.3°C
- Wavelengths
- 340, 405, 450, 505, 546, 600, 660, 750 nm
- Display
- 8-inch capacitive touchscreen
- Connectivity
- LIS, USB and network supported
- Printing
- Built-in printer and network printing
- Storage
- 64 GB
- Dimensions
- 210 × 230 × 300 mm
- Weight
- 4.5 kg
