Mobile molecular testing
Mobile PCR. A workflow ready to travel.

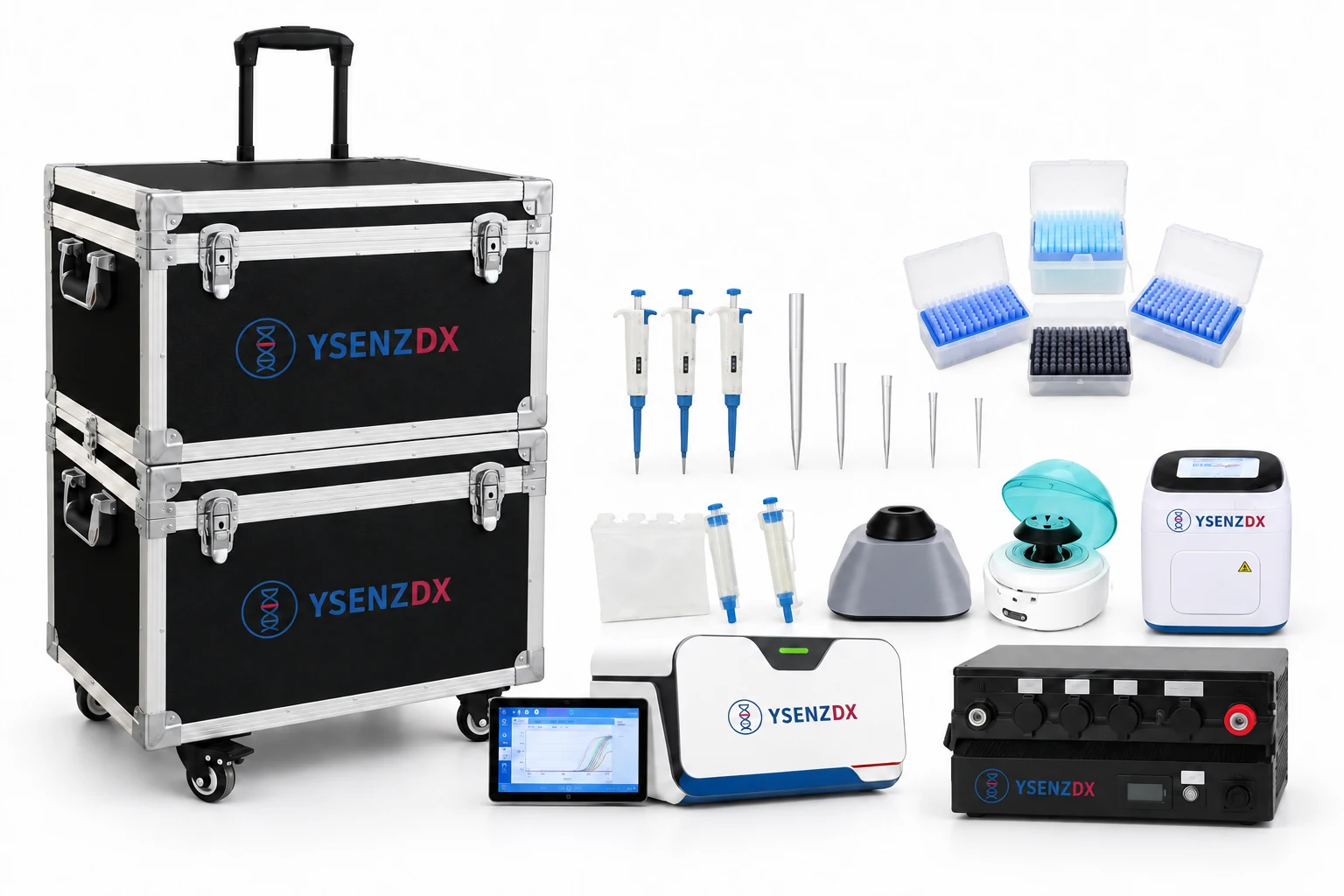

A transportable setup combining automated nucleic acid extraction, 16-sample real-time PCR, mobile power and essential accessories in protective wheeled cases.
Final finish and contents are confirmed with the order. A 16-sample PCR run may need more than one extraction run.
16 samples
Real-time PCR capacity
1–4 samples
Extraction capacity per run
50 Ah
Mobile power supply
8–13 min
Extraction, protocol dependent
From sample preparation to amplification
01
Automated extraction
A magnetic-bead nucleic acid extractor with prepackaged TM-36 reagents, UV decontamination and a compact benchtop footprint.
02
Real-time PCR
A 16-sample, four-channel amplification system operated through an external tablet, with fluorescence detection and USB connectivity.
03
Mobile power and transport
A 50 Ah power supply and protective wheeled cases keep the configured equipment together for transport and on-site setup.
04
Sample-preparation accessories
Pocket centrifuge, vortex mixer, 10 / 100 / 1000 μL pipettes, filter tips, PCR tubes, tube rack and tablet holder.
01
Set up
Position the cases, connect the equipment and separate sample preparation from amplification.
02
Extract
Load the prefilled reagents and run magnetic-bead extraction.
03
Amplify
Prepare the PCR reaction, load the tubes and select the program on the tablet.
04
Review
Review curves and controls before interpreting results. Follow the assay instructions.
Technical data
| Transport | Protective wheeled cases, 52 × 41 × 71 cm, 50 kg maximum |
|---|---|
| Mobile power | 50 Ah, up to 8 hours as stated; runtime depends on the load |
| Extractor | Magnetic bead, 1–4 samples, 8–13 minutes, 50–500 μL, UV lamp, 70 VA, 4.7 kg |
| PCR capacity | 16 samples, FAM / VIC / ROX / CY5 |
| PCR control | External Windows 10 tablet, USB 2.0 |
| PCR thermal | 0–100 °C, accuracy 0.1 °C, ramp up to 6.5 °C/s |
| PCR size | 220 × 200 × 150 mm, 3.5 kg, 220 W |
