PortfolioHuman IVD · Consumables
Ultrasonic lysis

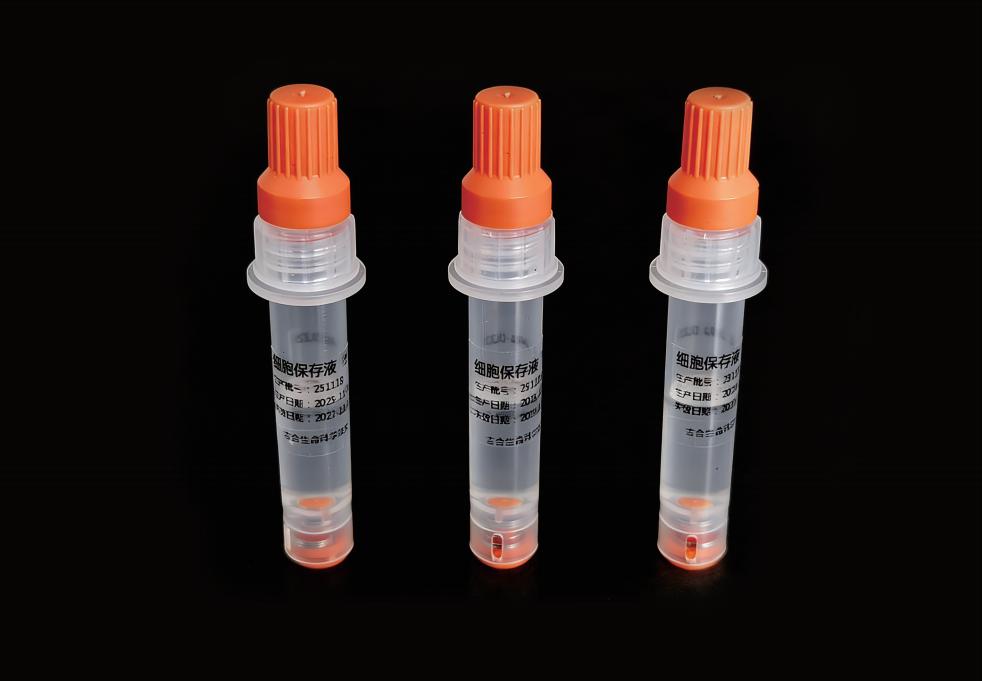

Volumetric tubes and nucleic acid release reagent
This human IVD consumable set is built for ultrasonic direct amplification. The sample goes into a continuous volumetric dispensing preservation tube, the original tube is loaded for a one-click ultrasonic treatment of about 60 seconds, and pre-aliquoted or lyophilized PCR reagent is dispensed straight into the PCR tube. Published performance for the method is a result within 30 minutes, and a coincidence rate above 99% versus traditional magnetic-bead extraction. The same release step is also described for animal and plant epidemic samples when sampling and detection happen on site. Confirm instrument compatibility and the assay menu for your market.
- One sample-addition step, then load for amplification
- About 60 seconds of ultrasonic treatment on the original tube
- Stat testing on arrival, or a high-throughput batch
- Pre-aliquoted or lyophilized PCR reagent, 10–25 μL into the PCR tube
- Volumetric tube: four dispense settings, error under 2 μL, described as a patented design
- Release reagent stored at room temperature and matched to the volumetric dropper
Specifications
Published figures for this configuration. Confirm the reagent menu and the regulatory file for your market before you order.
| Lysis time | About 1 minute (60 seconds, one-click) |
|---|---|
| Time to result | Within 30 minutes |
| Vs magnetic-bead extraction | Coincidence rate over 99% |
| Tube compatibility | About 90% of ultrasonic instruments |
| Dispense volumes | 5–10 μL, 15 μL, 20 μL, 25 μL |
| Dispense error | Less than 2 μL |
| PCR load volume | 10–25 μL |
| Release reagent | For the ultrasonic direct amplification protocol |
| Reagent storage | Room temperature |
| Applications | Respiratory and reproductive-tract pathogens; also described for animal and plant epidemic samples |
