PortfolioHuman IVD · Microscopy

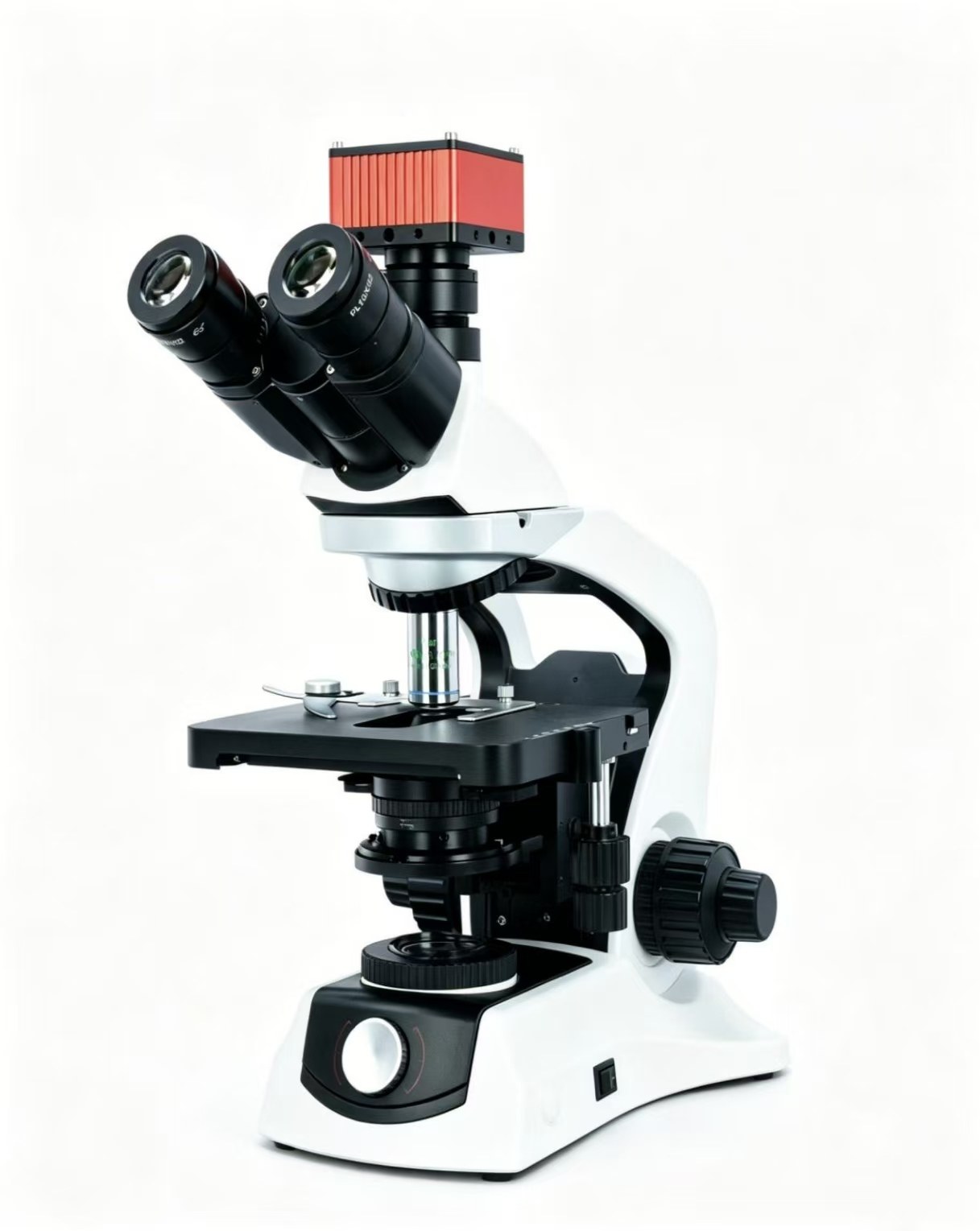

YS600 / YS800 / YS900
Biological microscope series
The YSENZDX microscope series shares one trinocular platform for human clinical microscopy. YS600 is the darkfield configuration, YS800 is dedicated phase contrast, and YS900 adds a pull-out slide to switch between darkfield and phase contrast. All three can be paired with the HD3900 camera. The camera is developed in-house. 1080p covers routine viewing and recording, and a 4K camera is available when needed. Its operating software runs on a connected computer for steps such as saving video. Current languages are Simplified Chinese, Traditional Chinese, English, Japanese and Vietnamese; others can be added on request.
- YS600 darkfield, YS800 phase contrast, YS900 switchable
- 30° trinocular head and 5 W LED illumination
- Optional in-house HD3900 camera: 1080p for routine use, 4K when required
- Operating software for video capture. Five languages now, more on request
- Shared stage, focusing and C-mount across the series
Specifications
Published figures for this configuration. Confirm the reagent menu and the regulatory file for your market before you order.
| Eyepieces | High-eyepoint widefield plan |
|---|---|
| Viewing head | 30° inclined trinocular |
| Focusing | Coaxial coarse/fine, 0.005 mm fine focus |
| Stage | 210 × 140 mm; travel 75 × 50 mm |
| Illumination | 5 W LED transmitted |
| Interpupillary distance | 48–75 mm |
| Camera interface | C-mount |
