Huma 5000
Multifunctional Blood Analyzer

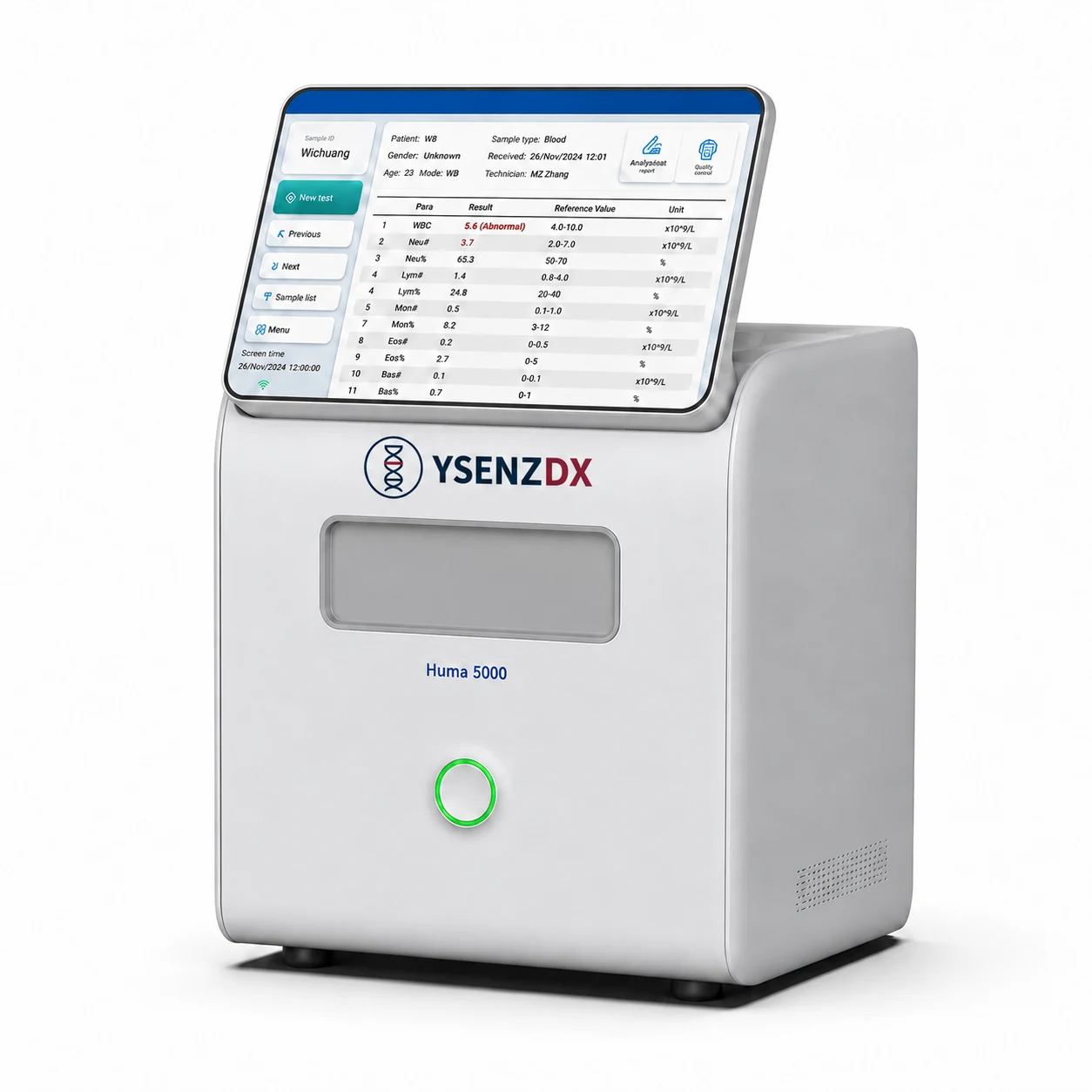

Huma 5000 is a compact multifunctional hematology analyzer for a 5-part white-cell differential. WBC, RBC and platelets are counted by AI recognition of the microscopic image. Hemoglobin uses a cyanide-free method. A run takes 10 μL of venous or capillary blood and reports in about 8 minutes. The instrument has no liquid circuit. It is the imaging analyzer in the human hematology range, next to the YD-H5 laser and impedance system.
- 25 parameters: 11 white-cell, 8 red-cell, 6 platelet
- 5-part differential: neutrophils, lymphocytes, monocytes, eosinophils and basophils
- 10 μL of venous or capillary blood, about 8 minutes
- AI microscopic imaging, with cyanide-free hemoglobin
- No liquid circuit
- 10.1-inch display, Android 12 and Bluetooth printing
Test menu
The differential names the five white-cell populations. It does not replace a manual film review when the result or the clinical picture calls for one.
| White blood cells | 11 | WBC, NEU#, LYM#, MON#, EOS#, BAS#, and the five matching percentages. |
|---|---|---|
| Red blood cells | 8 | RBC, HGB, HCT, MCV, MCH, MCHC, RDW-SD, RDW-CV. |
| Platelets | 6 | PLT, MPV, PDW, PCT, P-LCC, P-LCR. |
Specifications
Published figures for this configuration. Confirm the reagent menu and the regulatory file for your market before you order.
| Method | AI microscopic imaging for WBC, RBC and PLT; cyanide-free method for HGB |
|---|---|
| Parameters | 25 |
| White-cell differential | 5-part |
| Sample volume | 10 μL |
| Sample types | Venous or capillary blood |
| Time to result | About 8 minutes |
| Fluidics | No liquid circuit |
| Storage | Up to 100,000 results |
| Software | Android 12 |
| Display | 10.1-inch colour LED |
| Printing | Bluetooth |
| Dimensions | 274 × 245 × 415 mm |
| Weight | 5.6 kg |
