YS-M4 Veterinary Real-Time PCR System
Real-Time PCR System
YS-M4 is a compact real-time PCR system for focused veterinary molecular testing. The platform is about 750 g, with a 120 × 120 mm footprint, four fluorescence channels, a 4-inch touchscreen and Wi-Fi. Load one prepared 0.2 mL tube, close the lid and run the assay program. An extraction-free path or a separate AC20 extraction workflow can be used, depending on the assay. Volumes and specimen types must follow that assay’s instructions.
- About 750 g, footprint 120 × 120 mm
- FAM, HEX, ROX and CY5 channels
- Maximum ramp rate up to 10°C per second
- 4-inch touchscreen and Wi-Fi
- Single 0.2 mL tube per run
Specifications
Published figures for this configuration. Confirm the reagent menu and the regulatory file for your market before you order.
| Throughput | 1 sample per run |
|---|---|

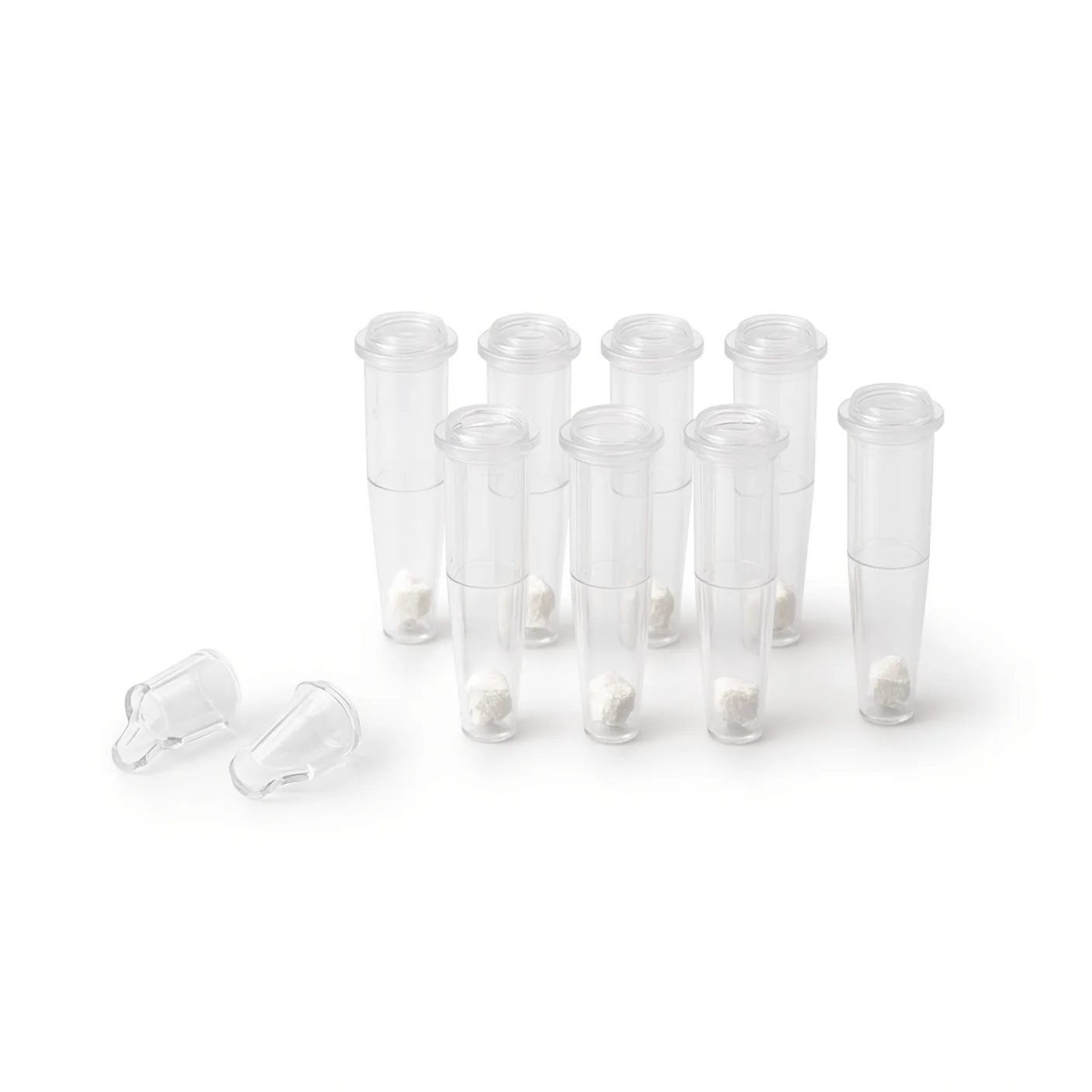

| Consumable | 0.2 mL thin-walled transparent tube |
| Reaction volume | 15–100 μL |
| Temperature control | Peltier, tube control |
| Max ramp rate | 10°C/sec |
| Control accuracy | ±0.1°C |
| Uniformity | ±0.2°C |
| Heated lid | 30–110°C, default 105°C |
| Channels | FAM/SYBR Green I, HEX/VIC/JOE/TET, ROX, CY5 |
| Dimensions | 120 × 120 × 140 mm |
| Power | DC 12 V, 80 W |
| Weight | Approximately 750 g |
